Gate tunnels
The main purpose of Gate is to enable access to OZ7SAT from the Internet. This is done by SSH-connecting to port 2244 on Gate. Port forwarding on Gate will then take you to port 22 on OZ7SAT.

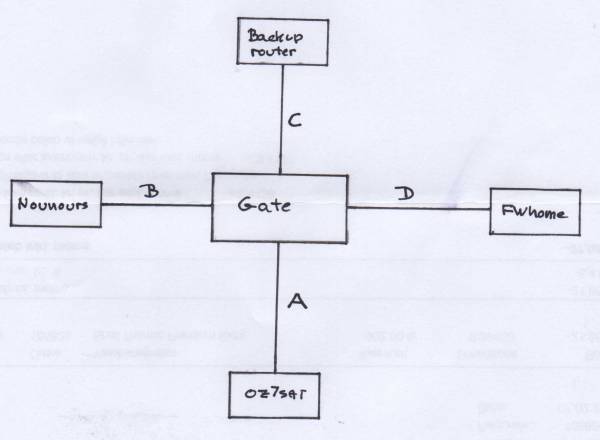

Gate is also used as a backup connection between Steve (FWhomenet and BkupRtr) and Bent (Nounours)
IF IP addr (-> remote) config port - descr tun0 10.8.0.1->10.8.0.6 'server' 1194: AMSAT Amager *) wg2 172.16.19.1->172.16.19.2 (networkd) 56872: AMSAT Amager tun1 10.8.1.1->10.8.1.10 'sb-tun1' 1195: FWhomenet (Steve) wg1 10.8.2.1->10.8.2.6 (networkd) 56871: Leopold (Bent) wg0 10.8.3.1->10.8.3.14 (networkd) 56870: BkupRtr (Steve) *) Bruges p.t. ikke
